How to Set Up Receipt Layout: Star TSP 100 Series Printer

How to Set Up Receipt Layout: Star TSP 100 Series Printer

After the printer is installed, you need to make sure that the correct page layout is set on a printer for POS receipts:

  1. Open up Control Panel > Devices and Printer

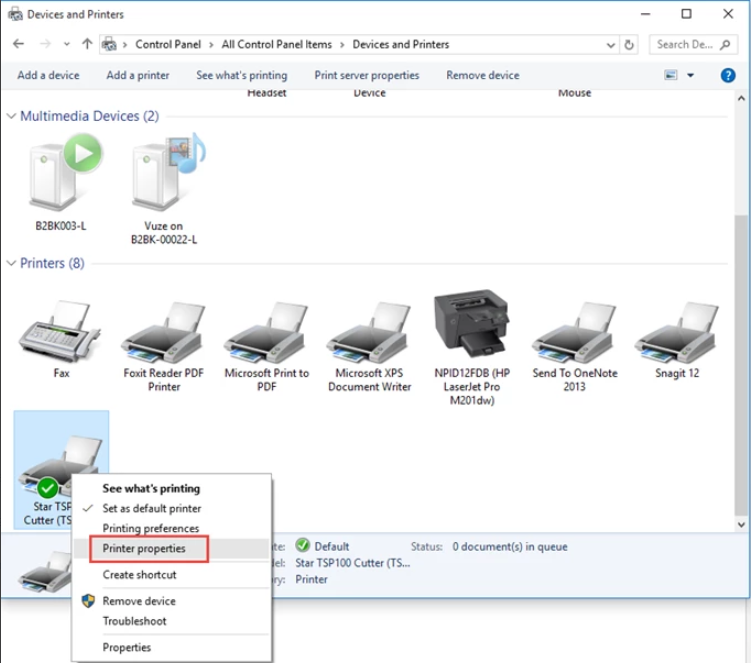

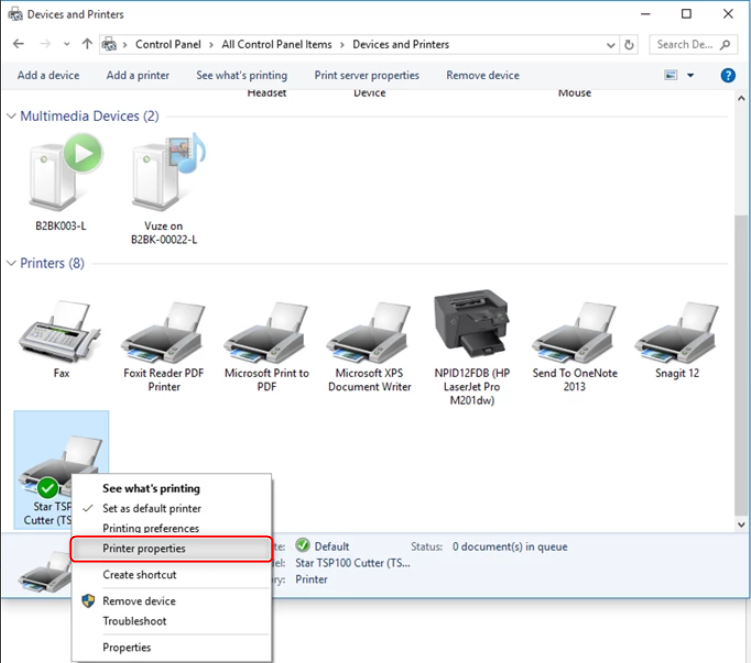

  2. Right mouse click on installed printer > Printer Properties

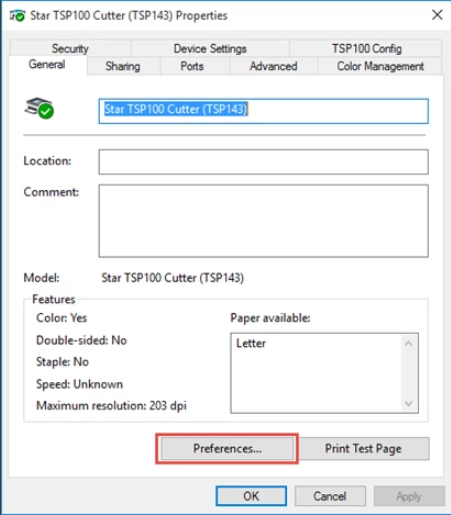

Go to Preferences.

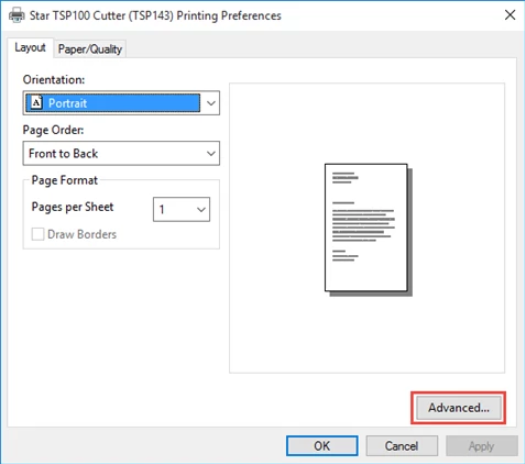

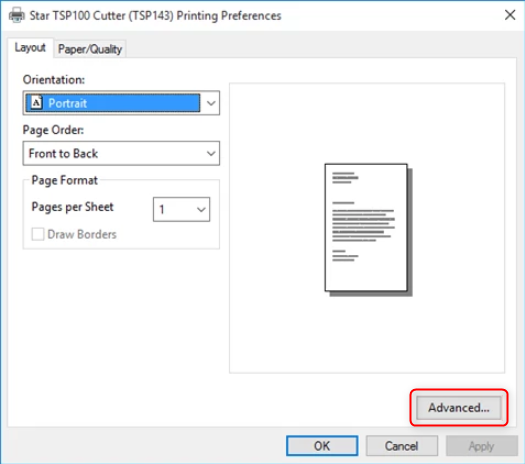

Go to Advanced.

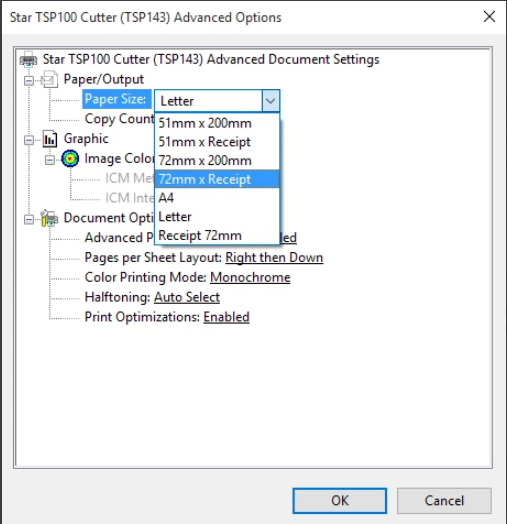

Select Paper Size: 72mm x Receipt and press OK.

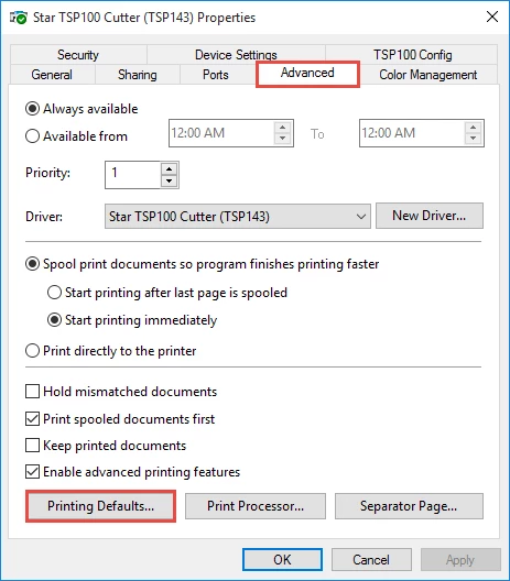

Go back to Printer Properties > select the Advanced tab > press Printing Defaults.

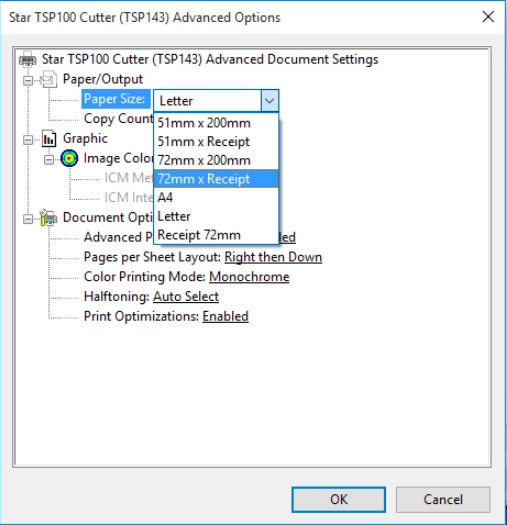

Select Paper Size: 72mm x Receipt and press OK.



Back on Printer Properties > select Device Settings tab > make sure 72mm x Receipt layout is selected and press OK.
