How to Configure PAX S300
Step 1: Connecting your PAX S300 unit

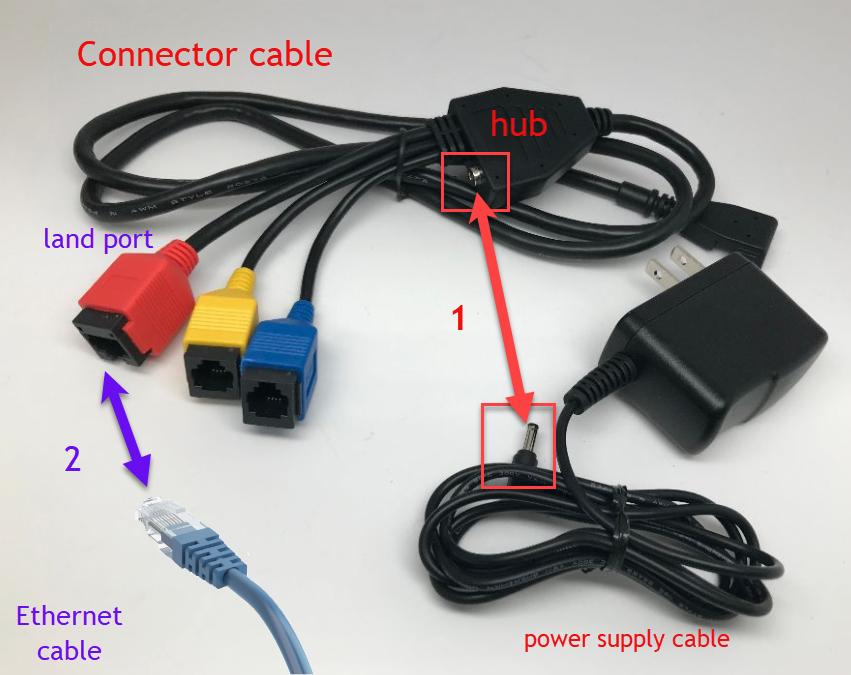

Connect the power supply cable to the hub on the connector cable.
Connect one end of the Ethernet cable to the Red land port on the connector cable. Then connect the other end of the Ethernet cable to an open port of your router.
* Make sure that your PC and PAX S300 device are connected to the same router
Step 2: Checking the IP address on your PAX S300
Once the PAX S300 is turned on, hit Menu button (or press and hold button 1 and Func) à Communication à LAN Parameters à IP Address
Small hint: while rebooting PAX S300, the correct IP address would be displayed for a few seconds on the top of the screen.
Step 3: Configuration with the POS system
Click on an Elevate Web icon on your desktop.
- Once you are logged in, go to Device Settings located on the left panel.
- Select to add Terminal.
- Make sure to select your Terminal.
